Solar Energy Cables

Solar cables play a critical role in the performance and reliability of photovoltaic systems. Designed to withstand harsh environmental conditions, they ensure the safe and efficient transmission of power from solar panels to inverters and throughout the entire solar installation.

Engineered for long-term durability, UV resistance, and high thermal performance, Elsewedy solar cables support continuous energy flow while helping maximize system efficiency and operational reliability for decades.

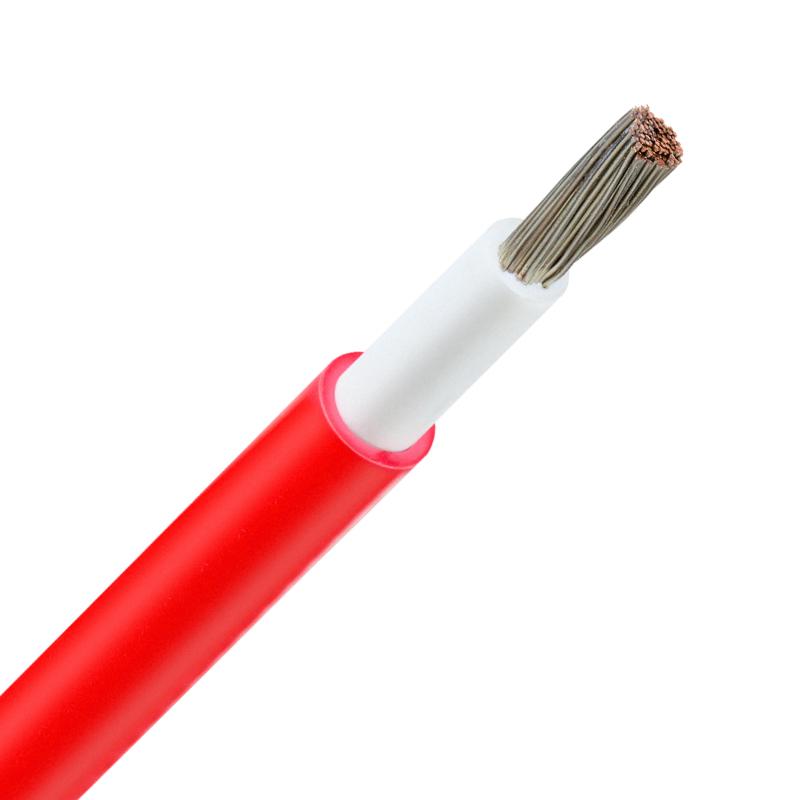

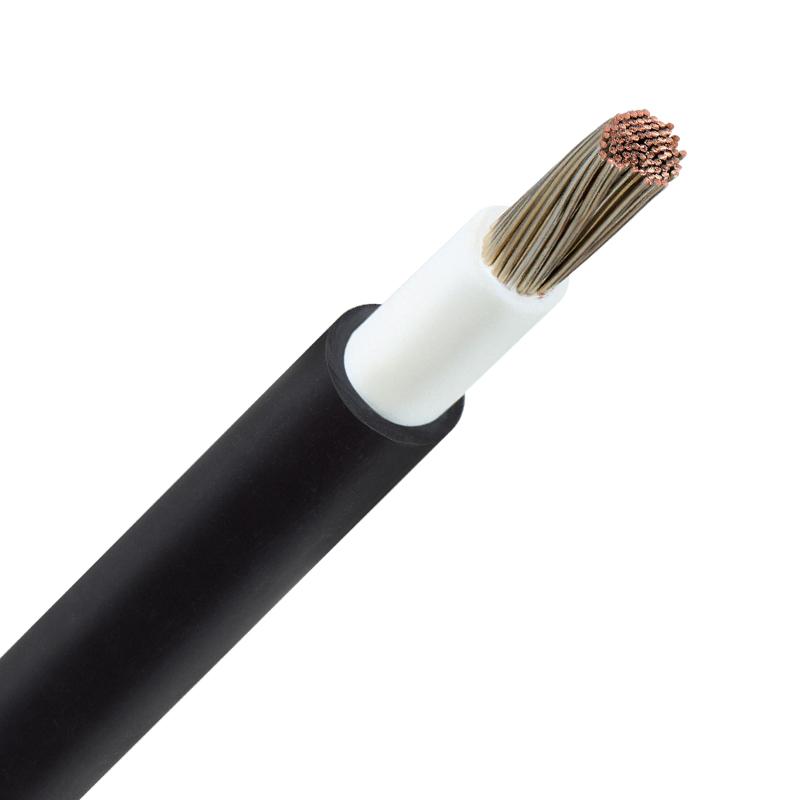

The H1Z2Z2-K Solar Cable

Single-core flexible solar cable designed for photovoltaic applications, featuring:

• Flexible tinned copper conductor (IEC 60228 Class 5)
• Cross-linked polyolefin (XLPO) insulation
• Halogen-free, flame-retardant sheath
• UV and ozone resistance
• Operating temperature up to +90°C
• DC voltage rating up to 1.5 kV
• Service life exceeding 25 years
• Compliant with major international standards including EN 50618 and TÜV 2 PFG 1169

Available in various sizes, lengths, and packaging options to meet different project requirements.

Applications

• Connection of photovoltaic (PV) modules and solar panels
• Low-voltage DC installations in solar power systems
• Interconnection between solar panels and junction boxes
• Connections between junction boxes and inverters
• Indoor and outdoor installations
• Fixed, free-hanging, and conduit installations
• Solar systems requiring Class II protective insulation
