Our Outdoor Cabinets are designed and manufactured in compliance with the communication industry standards.

It completes the fixation of optical cables, splicing, termination, storage, management of fibers, fixing, and cross-connection of optical fibers.

It is widely used in optical distribution networks.

Applications:

• Fiber telecommunication network
• FTTX

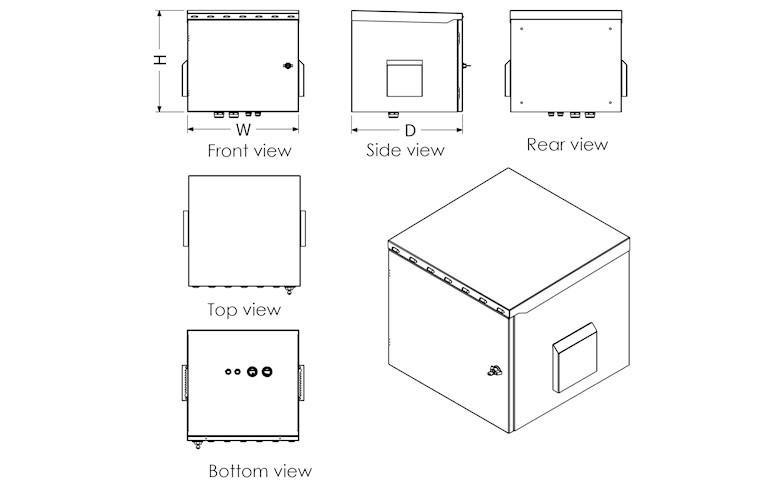

Model 1

Features:

• The cabinet body is manufactured from high-quality steel sheets
• External plate thickness 2 mm
• Double layer with isolation material
• Electrostatic outdoor painting RAL 7035 Light Gray structured powder coating
• Good space area for handling installed fibers for installation and maintenance phase
• Pyramid-shaped canopy, which ensures fast and easy sliding of rains and dust
• Front lockable door
• Side door with internal lock
• Smart lock ready
• Built-in base to accommodate slack incoming cable
• Excellent cable management
• The cable enters and exits from cable holes at the cabinet base
• IP Rate 55
• Empty net weight: 180 Kg

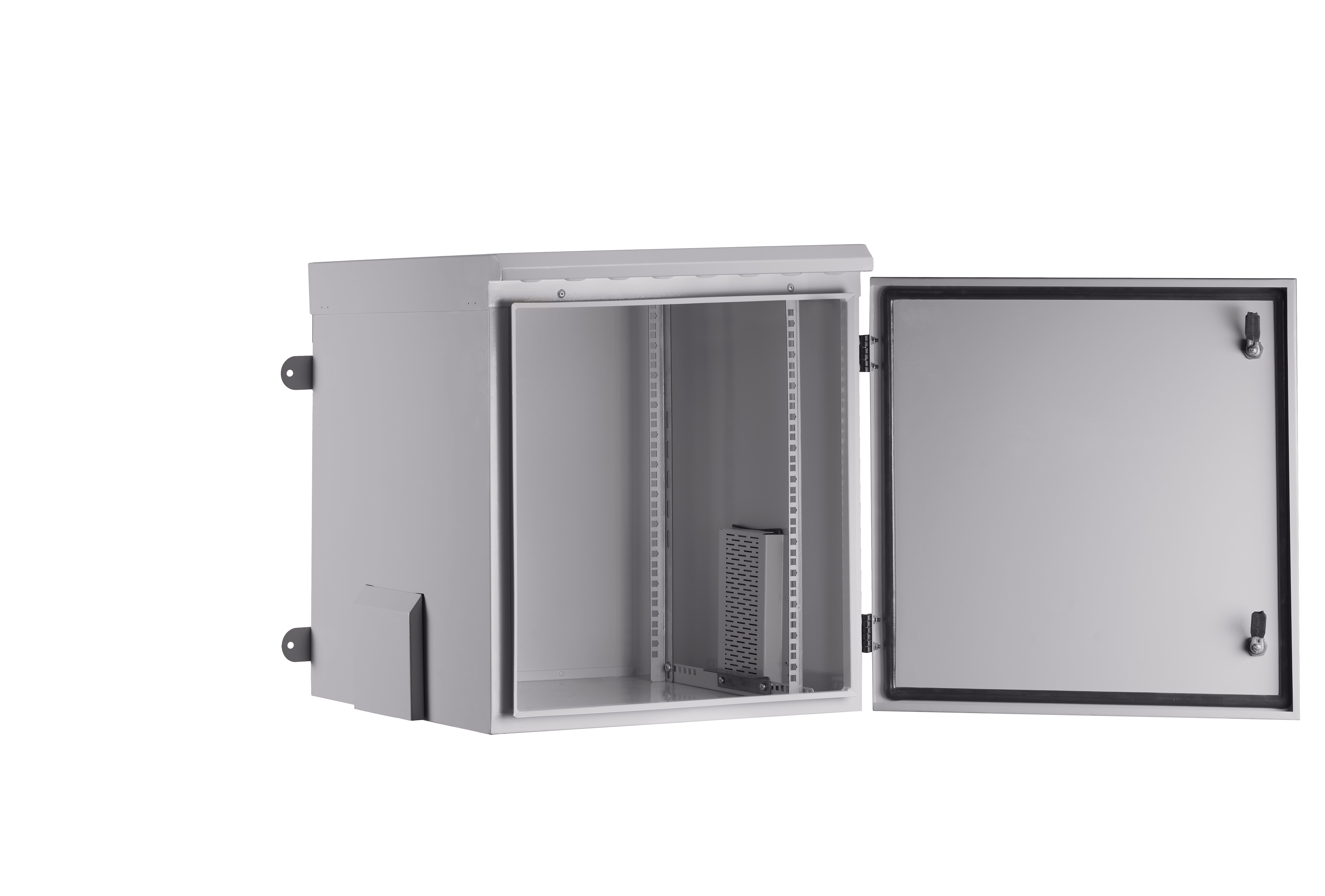

Model 2 - A

Features:

• The cabinet body is made of galvanized steel sheets
• Good space area for handling installed fibers for installation and maintenance phase
• Two access doors, front and rear doors for easy cable management
• Front and rear lockable door
• Built-in base to accommodate slack incoming cable
• Excellent cable management
• The cable enters and exits from the cable holes at the base of the cabinet
• Different options of IP Rate are available upon request: IP55 or IP65
• RAL 7035 Light Gray

Model 2 - B

Features:

• The cabinet body is made of steel material
• Painting Material:

1. Anti-corrosion zinc-rich epoxy primer for iron and steel
2. Prevents corrosion and rust of steel
3. Adheres firmly to steel surface
4. High resistant to water, salts, and chemicals
5. The cabinet has excellent heat insulation as well as fire resistance
6. Inflammable painting, electrostatic oven painting RAL 7016
7. RAL 7035 Light Gray

• Good space area for handling installed fibers for installation and maintenance phase
• Two access doors, front and rear doors for easy cable management
• Front and rear lockable door
• Built-in base to accommodate slack incoming cable
• Excellent cable management
• The cable enters and exits from the cable holes at the base of the cabinet
• IP Rate 65 according to IEC60526
• Including TE logo printed on both sides
